SHANGHAI QUANYE METAL PACKAGING MATERIALS CO.,LTD is the largest manufacturer of tin mill products in China with advanced technical equipments, It was established in 2001, located in Shanghai,China.
6 Years
| Ask Lasest Price | |
| Brand Name : | QuanJiang |
| Model Number : | DR TINPLATE |
| Supply Ability : | 50000MT/Month |
| Delivery Time : | negotiated |
| Certification : | MILL CERTIFICATE |
| Price : | Negotiated |
| Payment Terms : | T/T |
Tinplate (Chinese Pinyin: ma kou tie),or SPTE in English terminology,is a kind of cold-rolled,
low-carbon thin steel plate or steel tape electroplated with pure tin for commercial use. Tin is
corrosion and rust-proof. Tinplate thus combines the strength and formability of steel and the
corrosion resistance,solderability and pleasing appearance of tin to offer a new material that
is resistant to corrosion, non-toxic, highly strong and ductile.
Electrolytic Tin Plate Paramenters
Prime quality tin plate sheet electrolytic tinplate transparent
coated for tin can making
Electrolytic Tin Plate Description
| PRODUCT | Prime tinplate |
| STANDARD | BS EN 10202, DIN EN 10203, GB/T2520 , JIS G3303 |
| MATERIAL | MR |
| Grade | Prime |
| Annealing | BA,CA |
| THICKNESS | 0.14-0.45mm |
| WIDTH | 600-1050mm |
| TEMPER | T2, T2.5, T3, T3.5, T4,T5 ,DR7,DR7M,DR8 |
| COATING: | 2.8/2.8, 5.6/5.6, 2.8/5.6,2.0/2.0 g/m² or according to customer's requirement |
| FINISHS: . | Bright,Silver,Stone, Matte |
PACKINGS: | export packing. Or according to customer's requirements. |
| MOQ | 25 tons |
| DELIVERY | 15-30 days after payment |
Available Sizes
| Black Plate | Normal Thickness | Normal Width | Normal Length (sheet) |
| Single Reduce | 0.15-0.45mm | 700-1200mm | 600-1168mm |
| Double Reduce | 0.15-0.45mm | 700-1200mm | 600-1168mm |
Temper Grade
Q/BQB | JIS | ASTM | EM | EN | ISO | |
| Single Reduce | - | T-1 | T-1(49) | T50 | TS230 | TH50+CE |
| T-1.5 | - | - | - | - | - | |
| T-2 | T-2 | T-2(T53) | T52 | TS245 | TH52+CE | |
| T-2.5 | T-2.5 | - | - | TS260 | TH55+CE | |
| T-3 | T-3 | T-3(T57) | T57 | TS275 | TH57+CE | |
| T-3.5 | - | - | - | TS290 | - | |
| T-4 | T-4 | T-4(T61) | T61 | TH415 | TH61+CE | |
| T-5 | T-5 | T-5(T65) | T65 | TH435 | TH65+CE | |
| Double Reduce | DR-7M | - | DR-7.5 | - | TH520 | - |
| DR-8 | LR-8 | DR-8 | DR550 | TH550 | TH550+CE | |
| DR-8M | - | DR-8.5 | - | TH580 | TH580+CE | |
| DR-9 | DR-9 | DR-9 | DR620 | TH620 | TH620+CE | |
| DR-9M | DR-9M | DR-9.5 | DR660 | - | TH660+CE | |
| DR-10 | DR-10 | - | - | - | TH690+CE |
Coating
Former Coating | Coating Weight Code | Nominal Coating Weight | Minimum Average | |
| Equaly Coated | 10# | 1.1/1.1 | 1.1/1.1 | 0.9/0.9 |
| 20# | 2.2/2.2 | 2.2/2.2 | 1.8/1.8 | |
| 25# | 2.8/2.8 | 2.8/2.8 | 2.5/2.5 | |
| 50# | 5.6/5.6 | 5.6/5.6 | 5.2/5.2 | |
| 75# | 8.4/8.4 | 8.4/8.4 | 7.8/7.8 | |
| 100# | 11.2/11.2 | 11.2/11.2 | 10.1/10.1 | |
| Differentialy Coated | 25#/10# | 2.8/1.1 | 2.8/1.1 | 2.5/0.9 |
| 50#/10# | 5.6/1.1 | 5.6/1.1 | 5.2/0.9 | |
| 50#/25# | 5.6/2.8 | 5.6/2.8 | 5.2/2.5 | |
| 75#/25# | 8.4/2.8 | 8.4/2.8 | 7.8/2.5 | |
| 75#/50# | 8.4/5.6 | 8.4/5.6 | 7.8/5.2 | |
| 100#/25# | 11.2/2.8 | 11.2/2.8 | 10.1/2.5 | |
| 100#/50# | 11.2/5.6 | 11.2/5.6 | 10.1/5.2 | |
| 100#/75# | 11.2/8.4 | 11.2/8.4 | 10.1/7.8 |

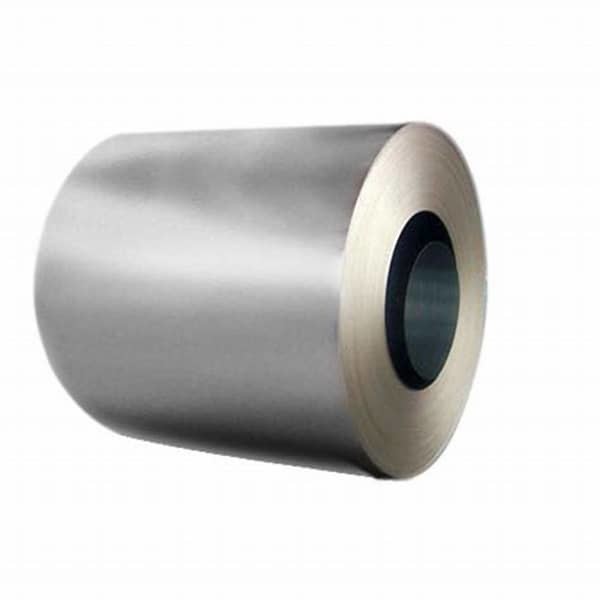

TINPLATE COILS Show
TINPLATE SHEETS WORKSHOP SHOW
| Classification | Main Applications | |
| Food Cans | Cans for preserved food | Preserved fishery and agricultural products, etc. |
| Cans for beverages | Juice, carbonated soft drinks, other beverages, etc. | |
| General Cans | 4L Cans | Automobile oil, mechanical oil, etc. |
| 18L Cans | Industrial containers for paint and oils | |
| Pail Cans | Industrial containers for paint and oils | |
| Aerosol Cans | Cosmetics, butane gas, pesticide, etc. | |
| Crown | Crown Caps | Liquor, soft drink bottle caps |
| Others | Electronic Components | Electronic items such as TV, tuner cases, etc. |
| Electronic Jar | Electronic items such as electric cookers, etc. | |
| Others | Other shell of batteries, toys, stationeries, etc. | |
